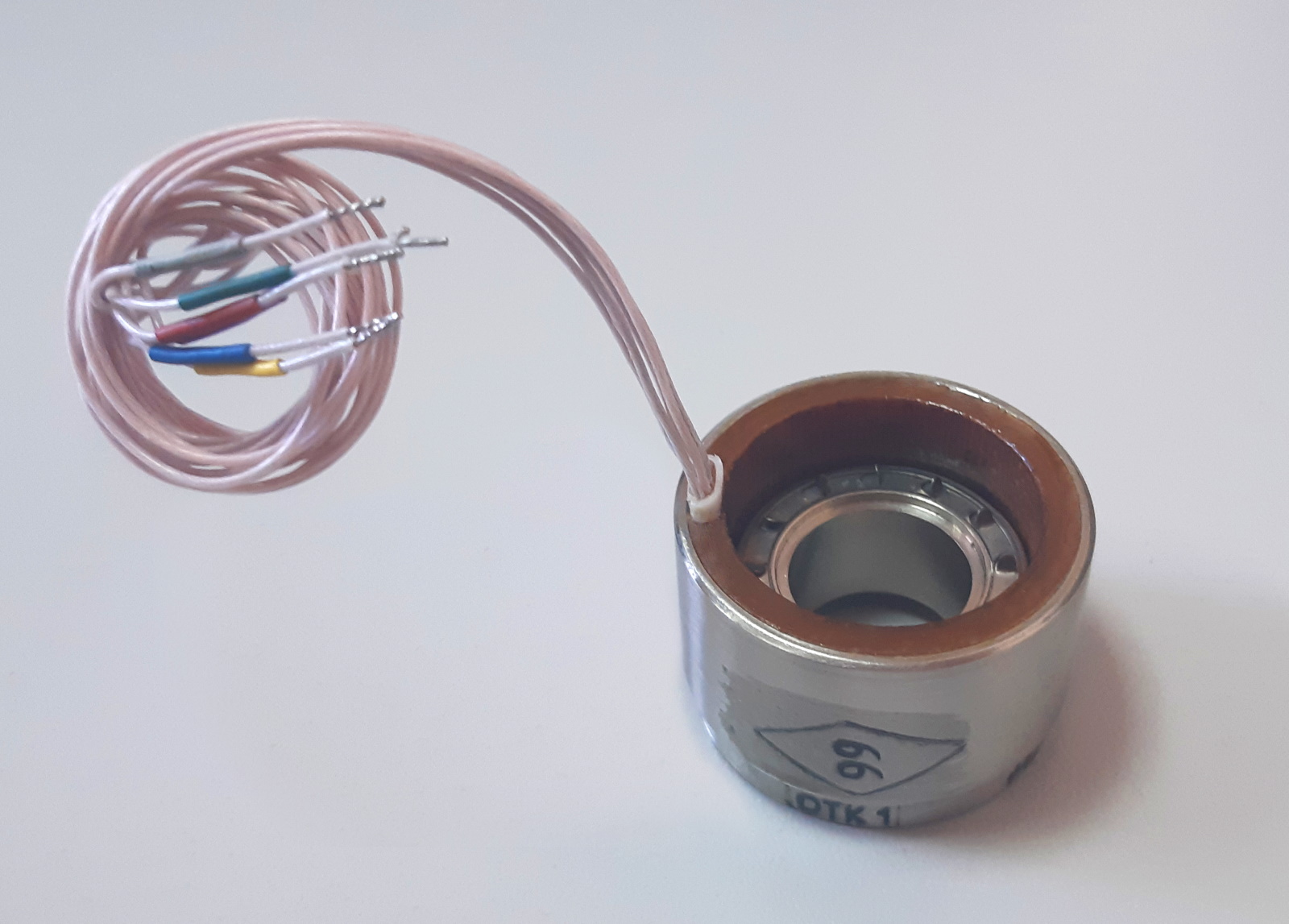

АО «IPC «Aerogard» developed and mastered the production of «Non-contact torque motor» (type DBM) designed to work in automatic control systems as an executive motor.
Designed motor made by technical specifications (AURG521573.001 TU) with forced stator cooling function.
|
Main parameters for DBM-U-40-0,04-5-3 AURG521573.001 TU: |
|
|
The amplitude value of the rated supply voltage |
27±6V |
|
Angular shift between stator winding phases |
(120± 3)º |
|
The maximum static timing torque of the motor at a rated supply voltage of 27 V must be at least |
0,04N·m |
|
Consumption current, no more than |
4,4A |
|
Idle rotation speed, not less than |
4500 rpm |
|
Аmplitude of EMF induced in stator phase windings, not less than |
14 V |
|
Number of pairs of rotor poles |
4 |
|
DC resistance of windings |
4,9-5,9 ohms |
|
Electrical insulation strength at a frequency of 50 Hz, not less than |
500 V |
|
Insulation resistance under normal climatic conditions, at least |
20 Megohms |
|
Increased operating temperature |
+85ºC |
|
Temperature range |
-60…+85ºC |
|
Engine operating time in compliance with technical requirements, not less than |
20000 Hrs |
|
Service life |
18 years |
|
Max weight |
0,12 kg |
|
Schematic diagram of a three-phase electric motor DBM-U-40-0,04-5-3 |
||
 |
||
|
Color coding of motor outputs |
||
|
№ of output |
Phase |
Output color coding |
|
1 |
Phase A - start |
Purple |
|
2 |
Phase B - start |
Green |
|
3 |
Phase C - start |
Blue |
|
4 |
Phase A - end |
Red |
|
5 |
Phase B - end |
Yellow |
|
6 |
Phase C - end |
Gray |
