АО «IPC «Aerogard» developed and mastered the production of wear-resistant modernized precision multi-turn feedback potentiometers for parts and products of military purpose PPML(F)-IM.
Designed potentiometers made by own specifications (AURG434176.001 TU).
|
|
Main parameters for PPML(F)-IM AURG434176.001 TU: |
|
|
|
Durability |
1 200 000 axis rotations |
||
|
Admission to the operating angle |
± 3 deg |
||
|
Dielectric strength |
2000 V |
||
|
The change of impedance |
0,5% |
||
|
Rated dissipation power |
1 W |
||
|
Insulation resistance |
1000 Megohms |
||
|
Increased operating temperature |
+90ºC |
||
|
Temperature range |
-60….+100ºC |
||
|
Service life |
15 years |
||
|
Operation angle |
7 200º |
||
|
Breakaway torque |
2 mN/m(20 gf-cen) |
||
|
Max weight |
40 gram |
||

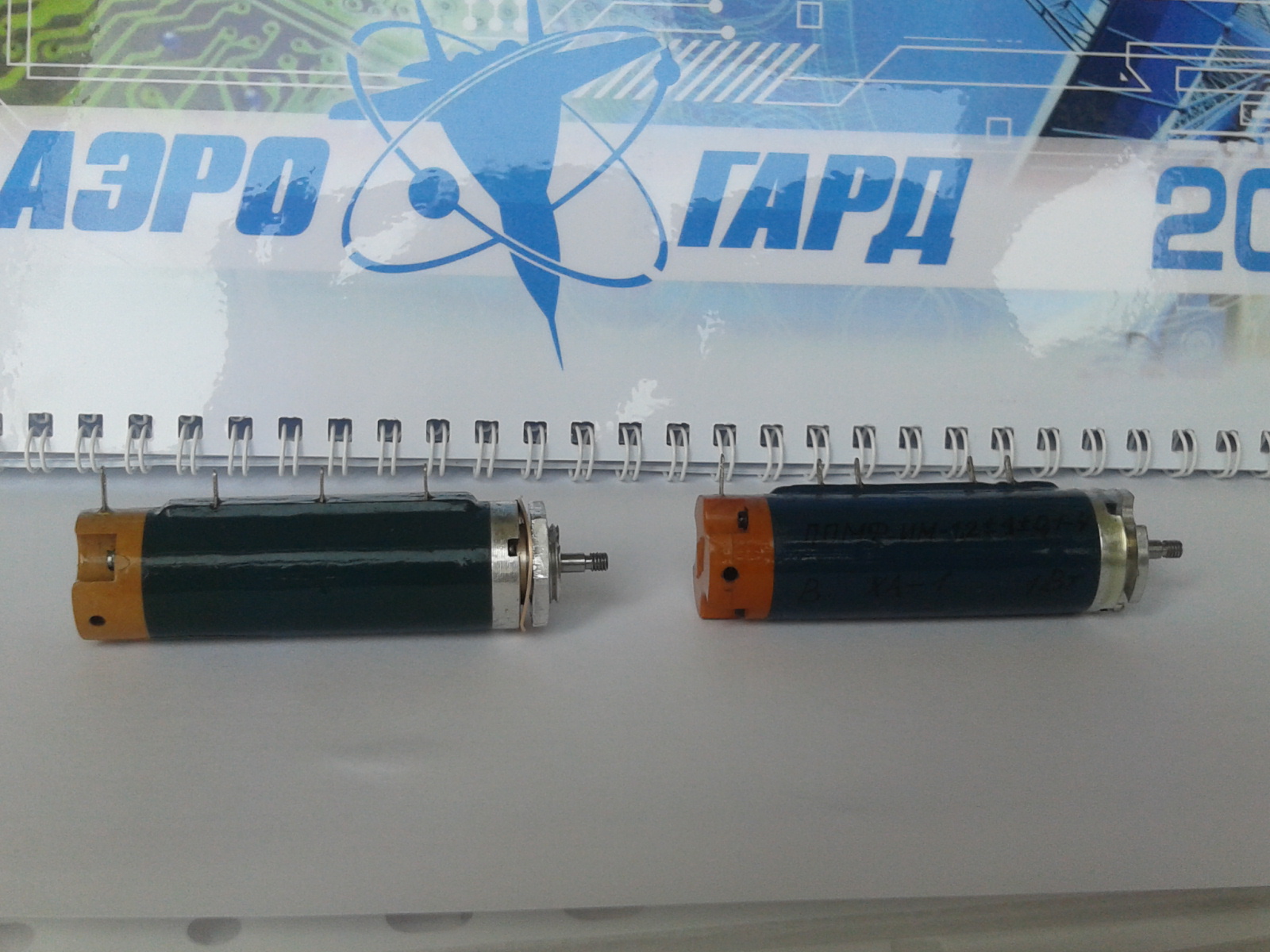

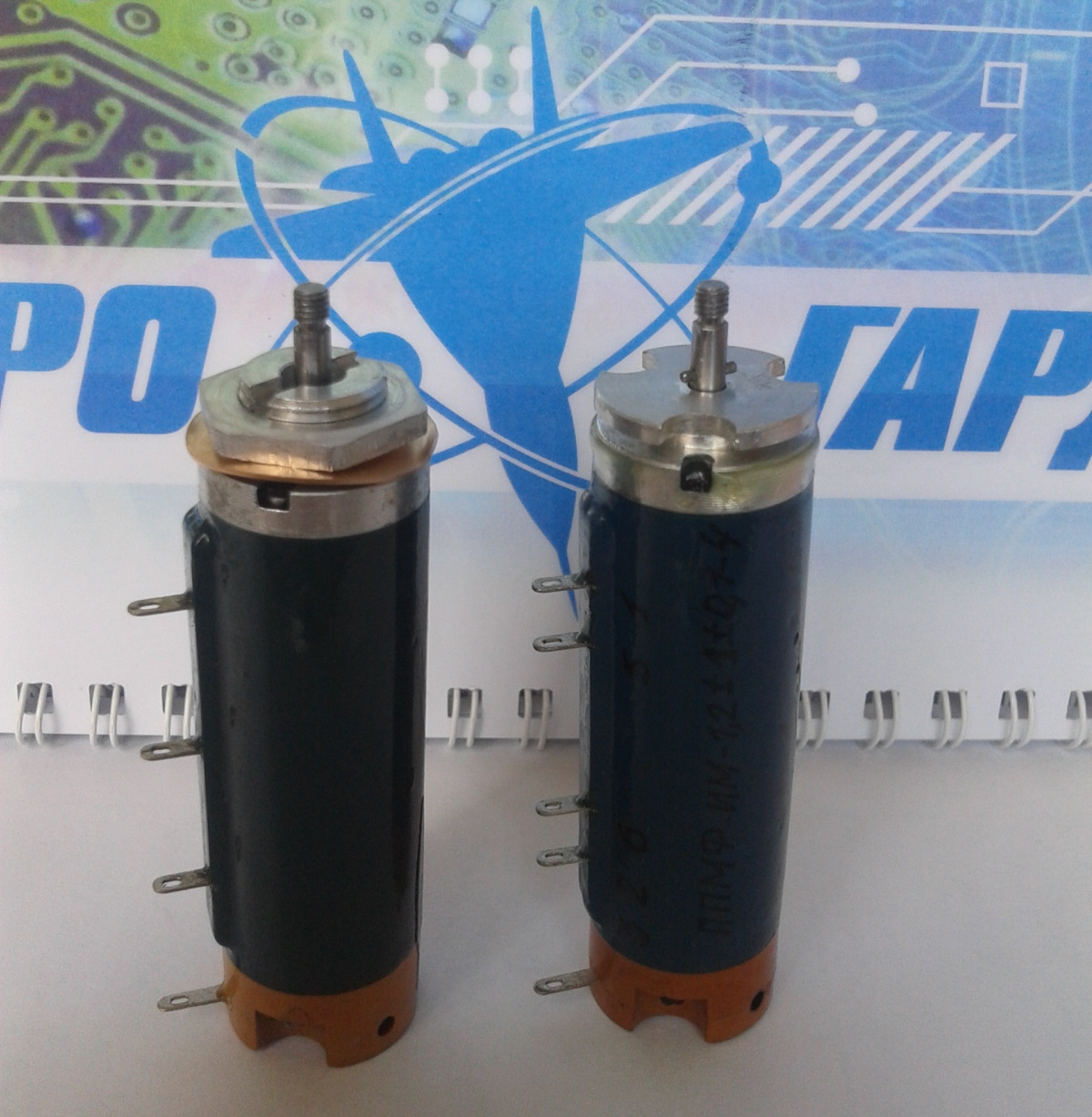

Potentiometers are produced in two variants design (a method of mounting potentiometer for panel - walnut or clamp).
